Broad Spectral No Gap Optical Switches – Fiber-Fiber™
- Continuously Transmission without Gaps, Coating, Lens
- Ultra-Low Loss, as low as 0.1dB
- Ultra Broadband 300 to 3000 nm
- High Isolation up to 80dB
- All Fiber Types: SM, MM, PM, Special
- All Fiber Core Size from 0.3mm to 1mm
- Lowest Loss for Short Wavelength
- No Mode Distortion for Multimode Transmission
- Vibration Insensitive, Moisture Resistance
- 1×1, 1×2, 2×2, 1×4, 1×8, 1×16, 1×32, 1×300
The Fiber-Fiber™ Series of optical switches directs light propagation continuously without interruptions or distortions. It offers unparalleled advantages, including nearly lossless transmission of about 0.2 dB for all ports (below 0.01 dB with special order), broad wavelength operation from 200 nm to 4000 nm, minimal back-reflection, no distortion to the mode properties for multimode transmission, lowest coupling loss for small core fibers, compatibility with any fiber types, vibration insensitivity, moisture resistance, and high optical power handling. It is also the lowest-cost solution in the industry. Based on a patented MEMS technology, the Fiber-Fiber™ Series self-aligns a fiber directly to another fiber with a tiny gap filled with an index-matching liquid, eliminating the need for lenses, AR coating, and internal surface reflections. We offer two platforms: Fast MEMS for fiber counts up to 8 and motor-driven for large fiber port counts up to 300. The Fiber-Fiber™ optical switches meet demanding application requirements and have a broad customer base, including optical measurement/testing systems, spectroscopy (including OTC, Raman, and fluorescence), industrial production and process control, space satellites, and biomedical applications.
-
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap 1×1, 1×2, 2×2 MEMS Fiber Optical Switch Kits, USB/Push Button
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$817+
SKU: FFSM
$817 – $1,387 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap 1×1, 1×2, 2×2 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$200+
SKU: FFSW
$200 – $976 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap Fast 1×1, 1×2, 2×2 MEMS Fiber Optical Switches, 0.4ms
0.4ms rise/fall, 50Hz repetition, ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$526+
SKU: FFSW
$526 – $1,780 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap Dual 1×2 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$358+
SKU: FFSW
This product has multiple variants. The options may be chosen on the product page
$358 -
This product has multiple variants. The options may be chosen on the product page

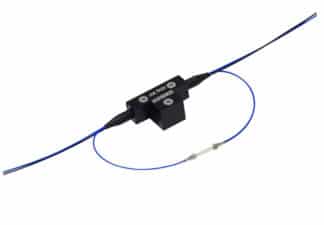

UV-IR No-Gap Full 2×2 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$322+
SKU: FFSW
This product has multiple variants. The options may be chosen on the product page
$322 – $837 -
UV-IR No-Gap Quad 1×2, 2×2 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, SM, MM, broadband, bidirectional
SKU: FFSW
-
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap Hermetic 1×1, 1×2, 2×2 Optical MEMS Fiber Optical Switches
ultra broadband 350-5000nm, vibration insensitive, SM, PM, MM, broadband, bidirectional
$1390+
SKU: FFSH
$1,390 -
This product has multiple variants. The options may be chosen on the product page

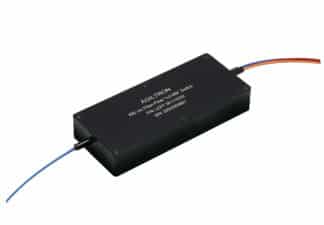

UV-IR No-Gap Large Core Compact 1×1, 1×2, 1×3 Fiber Optical Switches
up to 0.5 mm diameter, ultra-broadband UV-IR, 1x1, 1x2, 1x3, bidirectional
$750+
SKU: LCFF
$750 – $1,450 -
This product has multiple variants. The options may be chosen on the product page
UV-IR Large Core 1×2 Fiber Optical Switches
ultra broadband 350-5000nm, 5ms, up to 1mm diameter, bidirectional
$504+
SKU: FFLS
This product has multiple variants. The options may be chosen on the product page
$504 – $1,003 -
This product has multiple variants. The options may be chosen on the product page
UV-IR Large Core High Power Fiber Optical Switches
ultra broadband 350-5000nm, up to 15W, up to 1mm diameter, ultra-broadband, 1x1, bidirectional
SKU: LFSH
$1364+
$864
This product has multiple variants. The options may be chosen on the product page -
This product has multiple variants. The options may be chosen on the product page

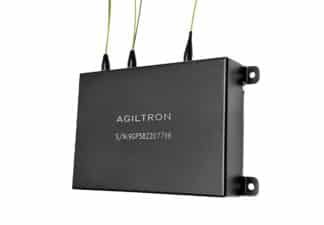

UV-IR No-Gap 1×4 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$887+
SKU: FFSW
This product has multiple variants. The options may be chosen on the product page
$887 – $4,185 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap 1×8 MEMS Fiber Optical Switches
ultra broadband 350-5000nm, ultra-low loss, vibration insensitive, SM, PM, MM, bidirectional
$1755+
SKU: FFSW
$1,755 – $13,455 -
This product has multiple variants. The options may be chosen on the product page
UV-IR 1xN Mini Fiber Optical Switches
ultra broadband 350-5000nm, bidirectional, high-power
SKU: FFMU, FFMR, FFMG, FFMT
$2074+
$1,980 – $4,104
This product has multiple variants. The options may be chosen on the product page -
This product has multiple variants. The options may be chosen on the product page
UV-IR 1xN Fiber Optical Switches
all fiber types, ultra broadband 350-5000nm, up to 300 ports, bidirectional
$1192+
SKU: LBSA
This product has multiple variants. The options may be chosen on the product page
$1,192 – $34,414 -
This product has multiple variants. The options may be chosen on the product page
UV-IR Dual 1xN Fiber Optical Switches
all fiber types, ultra broadband 350-5000nm, up to 300 ports, bidirectional
$3330+
SKU: LBSA
This product has multiple variants. The options may be chosen on the product page
$3,330 – $20,610 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap 1xN/2xN Fiber Optic Switch, 0.3dB Loss
ultra broadband 350-5000nm, no gap-lower insertion loss/continuous transmission without mode distortion, broadband, all fiber types
$1980+
SKU: LBSA
$1,980 -
This product has multiple variants. The options may be chosen on the product page
UV-IR No-Gap Single or Dual 1xN Fiber Optic Switch System
ultra broadband 350-5000nm, 70dB on/off, N up to 340, all fiber types, latching, low loss <0.3dB
Ethernet, RS232, TTL, USB$2601+
SKU: LBSCD
$2,601 -
UV-IR No-Gap Fiber Optic Switch System – Custom Configurations – Fiber-Fiber™
ultra broadband 350-5000nm, all fiber type, all wavelength, little distortion, bidirectional, latching, 70dB on/off
SKU: FFSY
-
This product has multiple variants. The options may be chosen on the product page
MxN No-Gap Fiber Optic Switch System – Fiber-Fiber™
ultra broadband 350-5000nm, M/N up to 340, all fiber types, latching, low loss<0.3dB, 70dB on/off
Ethernet, RS232, TTL, USB$11655+
SKU: SANM
$11,655
Drivers
-
This product has multiple variants. The options may be chosen on the product page
Switch Driver for 1×2/2×2
push button/TTL/USB Windows GUI for MEMS, LB, fiber-fiber 1x2/2x2 switches
$458+
SKU: SWDR
$458 – $538 -
Complex Switch Driver for Optical Switches/Combinations (not including NS type)
control up to 20 switches of CL, LB, MEMS, fiber-fiber types, USB, RS232, GUI, Ethernet
SKU: SWDR
-
Custom Switch Board and Software
we make custom electronic circuits for all application scenarios
SKU: SWDR
