Optical Switch Full 2×2 – Fiber-Fiber™

SM, PM, MM
Features:
  • Ultra-Low Loss ~ 0.1dB
  • Polarization Maintain
  • Ultra Broad Wavelength 300-2000nm
  • Ultra Large Extinction > 70dB
  • Ultra-Wide Operation Temperature -40 to 80C
  • High Optical Power Handling 1W
  • All Fiber Types: SM, MM, PM, Large Core

Clear
ENQUIRE NOW

SKU: FFSW

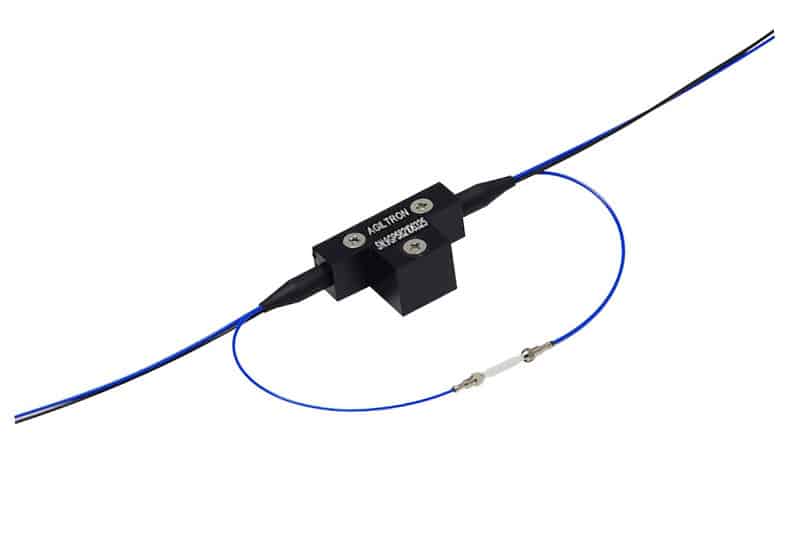

The FF Series fiber optic switch connects optical channels by a micro-mechanical fiber to fiber auto-alignment platform and activated via an electrical relay. The advanced design significantly increase the performance, offering unprecedented low optical loss, little wavelength dependence with no coatings, high power handling, as well as unmatched low cost. Latching operation preserves the selected optical path after the driver signal has been removed.  The switch has integrated electrical position sensors. The switch is bidirectional and conveniently controllable by 5V TTL.

Using no lens, the FF Series switch can accommodate all type of fibers, including SM. MM, PM, double cladding, bendable, large core, small core.

Reviews

There are no reviews yet.

Be the first to review “Optical Switch Full 2×2 – Fiber-Fiber™”

Your email address will not be published. Required fields are marked *

Min Typical  Max Unit
  Wavelength 300                                2500 nm
  Insertion Loss 1    0.2               0.4 dB
  Wavelength Dependent Loss                        0.01 dB
Polarization Dependent Loss                                       0.05 dB
Polarization Extinction Ratio2 23 dB
Return Loss 52       55 dB
353
Cross Talk 603/655                                                     dB
Switching Time     3 ms
Repeatability ± 0.02 dB
Durability 108 Cycles
Operating Optical Power 0.54 13 W
Operating Voltage 4.5 5 5.5 VDC
Operating Current (Latching/Non-Latching) 30 60 mA
Switching Type Latching / Non-Latching
Operating Temperature -40 ~ 80          oC
Storage Temperature -50 ~ 90       oC
Package Dimension   23.5L x 11.5W X 10H mm^3

Notes:

  1. SM 28 Fiber, Excluding Connectors. For MM fiber with laser CPR<14.
  2. For PM fiber only
  3. For MM fiber with laser CPR<14
  4. For MFD >= 6um core fiber
  5. For SM or PM fiber
