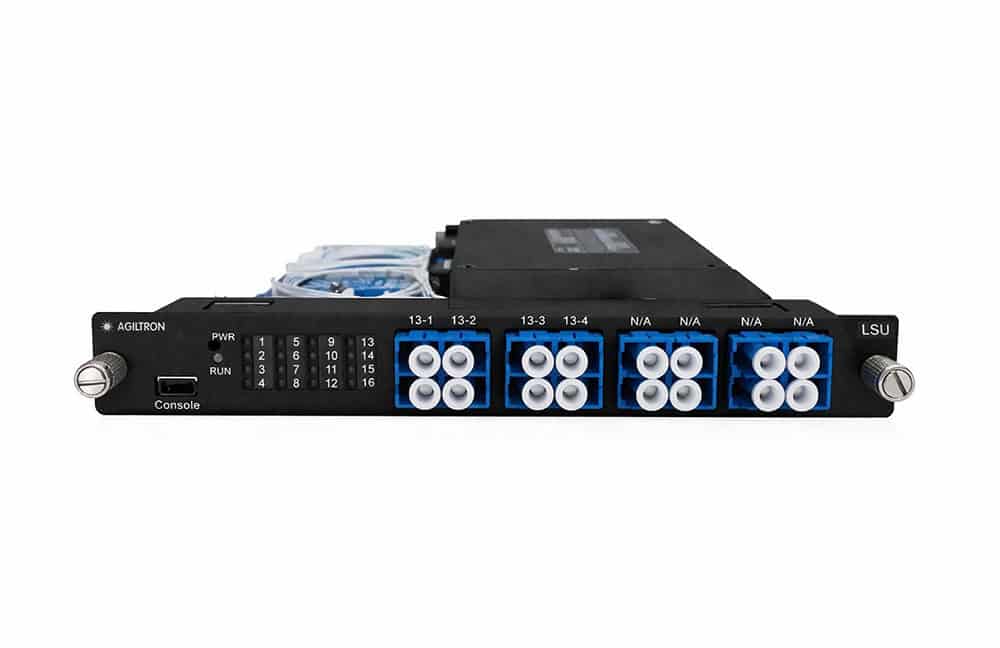

Optical Channel Power Monitor/Meter

Features:
  • -70dB
  • 850nm/1310nm/1550nm/1610nm
  • 16 Channels
  • High Accuracy
  • Large Range
  • Low Cost
  • Ease in Use
  • Net Ready

Clear
EMAIL ENQUIRY NOW

SKU: OCPM

This OPM series of the module is designed for network monitoring and laboratory test applications, featuring high accuracy, large dynamic range, and low cost. It can be used as inline passing through monitor with low insertion loss and totally passive without signal alternation up to 100GHz. It is compatible with Agiltron net-ready rack (carry service platform) that simultaneously controls multiple modules with 1U, 2U,4U, and 6U platform options. It can also be used as a laboratory optical power meters. For each module, up to 16 channel live power measurement can be displayed on a computer via an Ethernet connection. Multiple cards (large numbers of channels) can be displayed on one GUI.   Custom configurations of hardware and software are available.

Reviews

There are no reviews yet.

Be the first to review “Optical Channel Power Monitor/Meter”

Your email address will not be published. Required fields are marked *

Parameters Min              Typical           Max Unit
Center Wavelength  850, 1310, 1550,           1610 nm
Bandwidth +-20 nm
Power Monitoring Accuracy 5 10 +-25 dB
Power Measurement Range -70 3 dBm
Insertion Loss 1 dB
Channel Crosstalk 55 80 dB
Channel Selection 4/8/16
Interface Service rack pluggable
Power Consumption 1      W
Operating Temperature -10 50 oC
Storage Temperature -45 85 oC
Humidity 5-95 (no condensation) %
