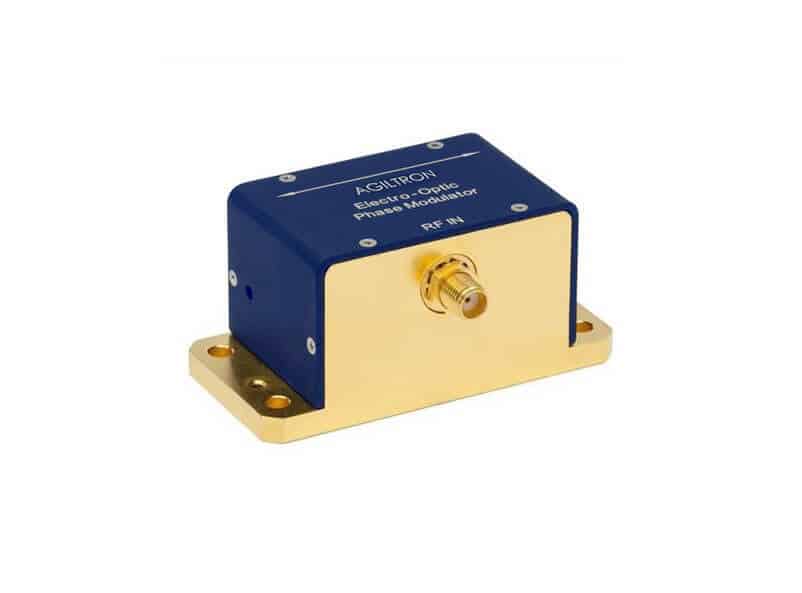

Amplitude/Phaser Electro-Optical Pockels Cell Modulator – No Resonance

Features:
  • High Performance
  • Compact Package
  • Easy integration
  • Customize Available
  • Low cost

Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: EOMN

The FEOM Series Free-Space Electro-Optic Modulator uses a compensated electro-optic crystal pair — engineered for superior high-power handling and short-wavelength stability compared to conventional LiNbO₃ — to modulate the phase or amplitude of free-space laser beams across a broad wavelength range. Offered in single-pair and dual-pair crystal lengths to reduce drive voltage and enable deeper or faster modulation, the system operates from DC to MHz when paired with its matched driver. We offer 200V 1 MHz driver that achieve full modulation depth up to 1550nm. Optional accessories include polarization cubes for high-extinction-ratio amplitude modulation, isolators to prevent back-reflections, and an output detector for feedback control, with a polarized input beam required for amplitude-modulation operation.
Optical power handling depends on the clear aperture size and the electro-optic (EO) material selected. Aperture size and crystal length dictate the required drive voltage. Compatible drivers are available on our website. For high-speed modulation, acousto-optic modulators (AOMs) should also be considered.
