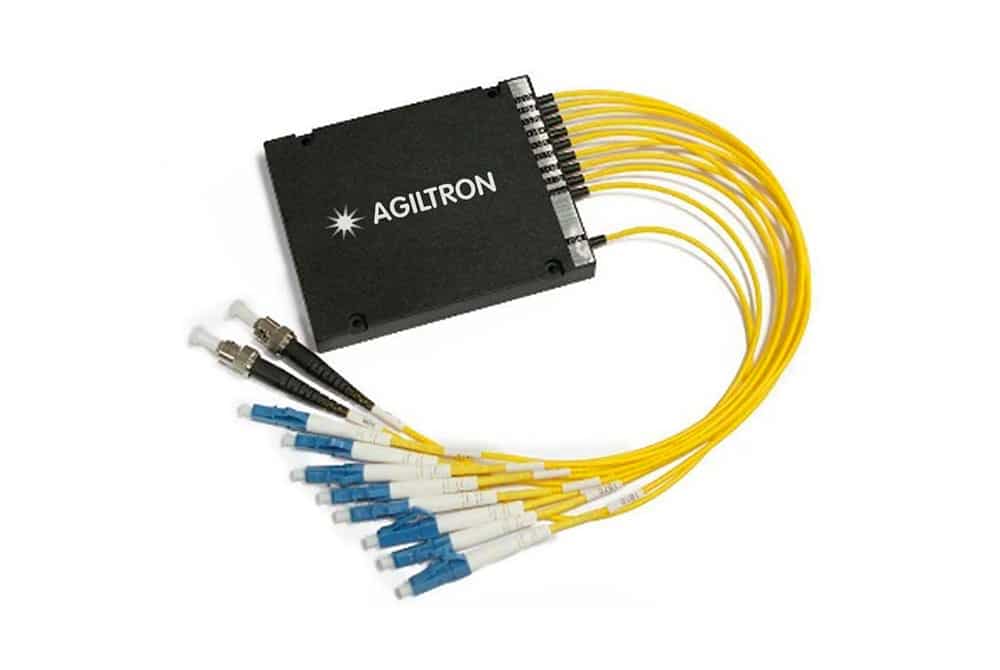

8 Channel CWDM Module

Features:
  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Highly Stable & Reliable
  • Compact


ENQUIRE NOW

SKU: CWDM

The CWDM module is made by fused fiber technology offering advantageous attributes of low cost, low insertion loss, and high stability. It comes with a matching pair.   It is ideally suited for CATV links.

Reviews

There are no reviews yet.

Be the first to review “8 Channel CWDM Module”

Your email address will not be published. Required fields are marked *

FC Series Performance Unit
Channel Numbers 8
Operation Wavelength  1270~1619 nm
Channel Passband 6.5 nm
Insertion Loss1 2 dB
Passband Ripple 0.3 dB
Isolation(Adjasent Channel) 30 dB
Isolation(Non-Adjasent Channel) 40 dB
Polarization Dependent Loss 0.1 dB
Polarization Mode Dispersion 0.1 ps
Directivity 50 dB
Optical Power Handling 500 mW
Operating Temperature -5~ 75 oC
Storage Temperature -40 ~ 85     oC
Fiber Type SM28e
Package Dimension  90 x 76 x 8 mm
  1. Excluding connectors
