Polarization Controller – Piezoelectric

Features:
  • Large Phase Change
  • High Reliability
  • Low Insertion Loss
  • Compact Size
  • High Optical Power Handling

3 Plates

Fiber Type SM400 SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 360 – 530 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟨,𝟦𝟦𝟨 $𝟦,𝟢𝟣𝟧 $𝟦,𝟧𝟨𝟧 $𝟧,𝟥𝟫𝟢 $𝟥,𝟧𝟩𝟧 $𝟦,𝟥𝟪𝟫 $𝟥,𝟦𝟩𝟨 $𝟦,𝟣𝟨𝟫 $𝟥,𝟧𝟢𝟫 $𝟦,𝟢𝟣𝟧 $𝟥,𝟩𝟤𝟫 $𝟥,𝟤𝟪𝟫 $𝟫𝟪𝟧 $𝟣,𝟥𝟢𝟫 $𝟦,𝟩𝟪𝟧 $𝟧,𝟣𝟣𝟧
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now

4 Plates

Fiber Type SM400 SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 360 – 530 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟧,𝟧𝟧𝟧 $𝟨,𝟦𝟤𝟦 $𝟧,𝟪𝟩𝟦 $𝟧,𝟧𝟫𝟫 $𝟥,𝟩𝟪𝟦 $𝟦,𝟧𝟫𝟪 $𝟥,𝟨𝟪𝟧 $𝟦,𝟥𝟩𝟪 $𝟥,𝟩𝟣𝟪 $𝟦,𝟤𝟤𝟦 $𝟥,𝟫𝟥𝟪 $𝟥,𝟦𝟫𝟪 $𝟣,𝟣𝟫𝟦 $𝟣,𝟧𝟣𝟪 $𝟧,𝟦𝟥𝟦 $𝟨,𝟦𝟤𝟦
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
Email Inquiry
Fast Quote-Select Part #
Questions About This Product

SKU: PIPC

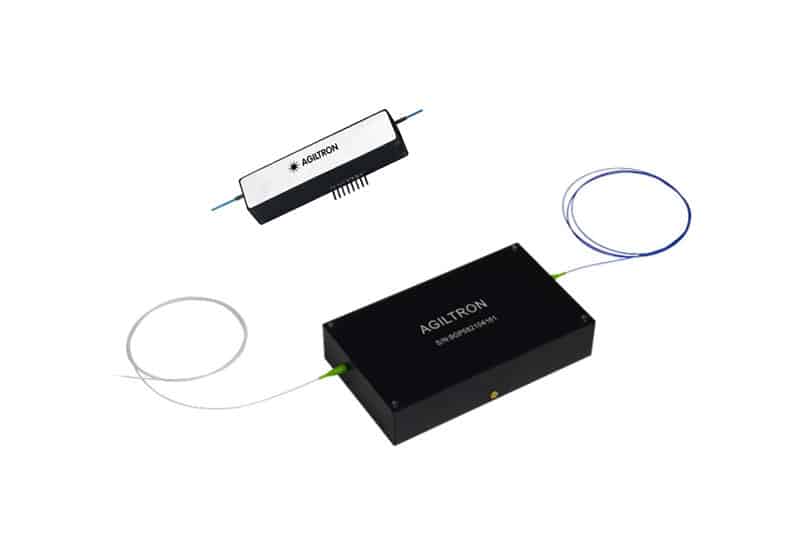

The Piezoelectric Polarization Controller (PIPC) utilizes three or four piezoelectric fiber squeezing plates arranged at a 45-degree angle apart to control fiber birefringence phase retardation. It features ultra-low insertion loss, all fiber type accommodation, high power handling, and a large phase change capability. We further offer driver with a convient 0-5V control inputs. The device is designed for customers to incorporate sensors and auto-control firmware, enabling endless polarization control while maintaining a constant output polarization without the need for resetting. The polarization controller is engineered to meet the operational requirements of fast response and continuous operation, providing an ultimate solution for precise polarization selection.
