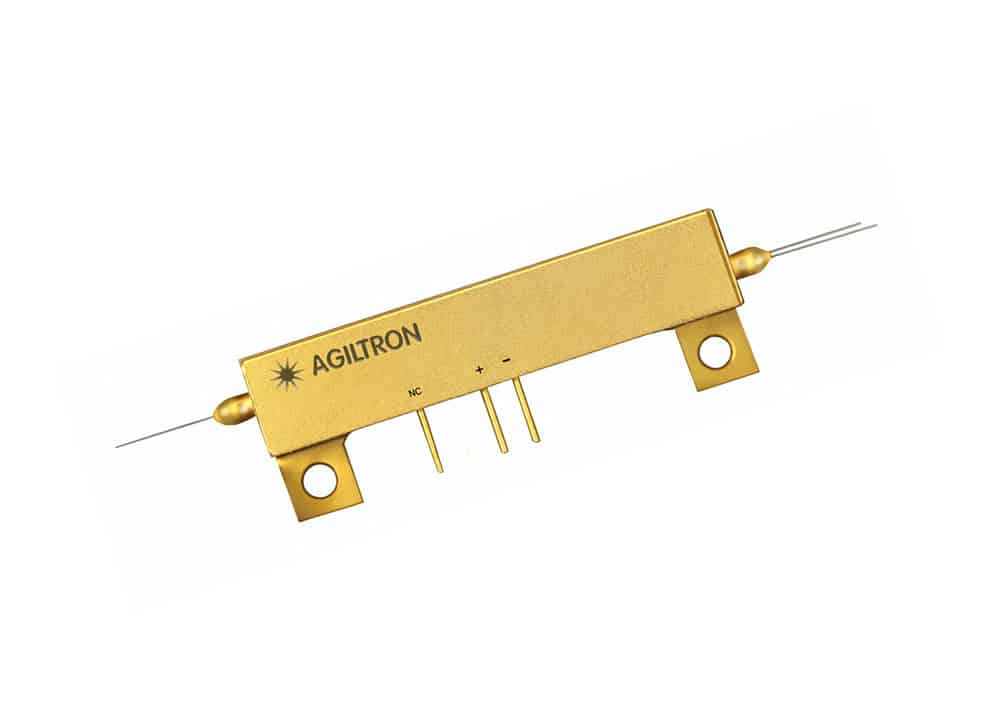

Fiber Optical Dual Phase Modulator Y-Branch 1550nm

Fiber Optical Dual Phase Modulator <span class="title-highlight" style="color:Red">Y-Branch</span> 1550nm

Features:

1550 ± 20 nm Operation
PM Input and Output Port
Polarization Extinction Ratio > 60 dB
Low Vπ Voltage 4.2 V
Polarization Crosstalk < -20 dB
Unpackaged Chip Available

Package

Fiber Type

Fiber Length

Fiber Cover

Connector

Configuration

Driver

Clear

SKU: DPMY

The DPMY is a three-port polarization-maintaining (PM) fiber device specifically designed for fiber-loop-based sensing applications, such as fiber optic gyroscopes and optical current sensors. It integrates a polarizer, a Y-junction coupler, and dual electro-optic phase modulators into a compact structure. Built on Lithium Niobate (LiNbO₃) waveguide technology, the DPMY delivers a high polarization extinction ratio (PER) exceeding 60 dB. This significantly reduces bias drift caused by polarization crosstalk-induced non-reciprocity, ensuring stable and accurate performance. The device is engineered for high reliability and consistent operation across a wide temperature range.

Spec Sheet (PDF)

Qty: 15 | $1080 | DPMY-180511111 | Standard RCPM15 0.5m None Non Standard None
