Optical Switches - Fiber-Fiber™

  • Ultra-Low Loss, as low as 0.1dB
  • Large Attenuation up to 65dB
  • Broadband 200 to 4000 nm
  • All Fiber Types: SM, MM, PM, Special
  • High Optical Power Handling 1 W
  • Low Cost

The Fiber-FiberTM Series of optical switch is based on a patent-pending micro-mechanical technology that self-aligns a fiber directly to another fiber with a tiny gap that is filled with an index-matching liquid.  The breakthrough technology enables light propagates in a continuous medium without interruptions, consequently eliminating the need for lenses and AR coating.  It offers unparalleled advantages of a very low loss of about 0.3dB for all ports,   broad wavelength operation from 200nm-4000nm, little back-reflection, amicable to any fiber types, and high optical power handling.  It is also the lowest cost solution in the industry. We offer two platforms: MEMS for fiber count up to 12 and motor-driven for large fiber port count up to 300.   The Fiber-Fiber TM optical switches have a broad customer base ranging from optical measurements/test systems telecommunications, spectroscopy (including Raman and fluorescence), industrial production and process control, telecommunications, as well as in the biomedical.

$175.00Add to cart

Switch Drivers

1×2 Fiber Optical MEMS Switch Kit Series, USB/Push Button – Fiber-Fiber™

1×2 Fiber Optical MEMS Switch Kit Series, USB/Push Button – Fiber-Fiber™

  • Ultra-Low Loss ~ 0.1dB
  • Polarization Maintain
  • Ultra Broad Wavelength 300-2000nm
  • Ultra Large Extinction > 70dB
  • Ultra-Wide Operation Temperature -40 to 80C
  • High Optical Power Handling 1W
  • All Fiber Types: SM, MM, PM, Large Core

$285.00Add to cart

Email Enquiry

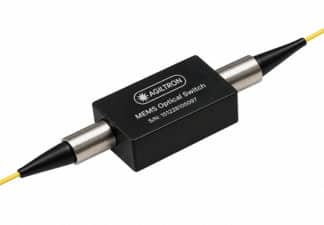

The Fiber-Fiber™ series MEMS 1×2 fiber optical switches offer exceptionally low optical loss about 0.2dB, intrinsic broad wavelength without any optical coatings, (transmit light of all wavelengths in the fiber), high optical power handling, and available in all fiber types, including single mode, multimode, polarization maintaining, double cladding, and special fibers. The superior performance is achieved via a patent pending MEMS technology in which light propagates in a continuous medium without interruptions. Due to the ease in manufacture, these switches have a lowest price guarantee. For volume discount, please email sales@agiltron.com

Single-Mode Selection
Fiber Type SM450 SM600 Hi780 SM800 Hi1060 SM28 SM2000
Wavelength Range* 480-650nm 620-650nm 760-800nm 830-870nm 960 – 1080nm 1020 – 1900nm 1.7-2.3 µm
Insertion Loss <1.7dB <1.3dB <1.2 dB <1.2dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.3W 0.4W 0.5W 0.7W 1W 1W
Datasheet
Price $455 $427 $364 $305 $273 $125 $413
Buy

*The wavelength dependence is solely determined by the fiber property

Polarization-Mode Selection
Fiber Type PM480 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 480nm 620-650nm 760-800nm 830-870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <1.9dB <1.7dB <1.5 dB <1.2dB <0.8dB <0.8dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $749 $716 $665 $665 $527 $285 $549
Buy

*The wavelength dependence is solely determined by the fiber property

Multi-Mode Selection
Fiber Type GIF50 GIF625 FG50LGA FG105LCA FG10LDA
Wavelength Range* 800-1600nm 800-1600nm 400-2400nm 400-2400nm 700-1000nm
Insertion Loss ≤0.5dB ≤0.5dB ≤0.8dB ≤1dB ≤1dB
Isolation 50dB 50dB 50dB 50dB 50dB
Datasheet
Price $196 $196 $245 $403 $294
Buy

*The wavelength dependence is solely determined by the fiber property

Electronic Driver Selection
Type Pushbutton and USB Interface With GUI
Datasheet
Price $195
Buy
